Fuel Panel

The real fuel panel has 4 display windows with electromagnetic number drums, a 7 position mode switch and a “BINGO” adjustment knob.

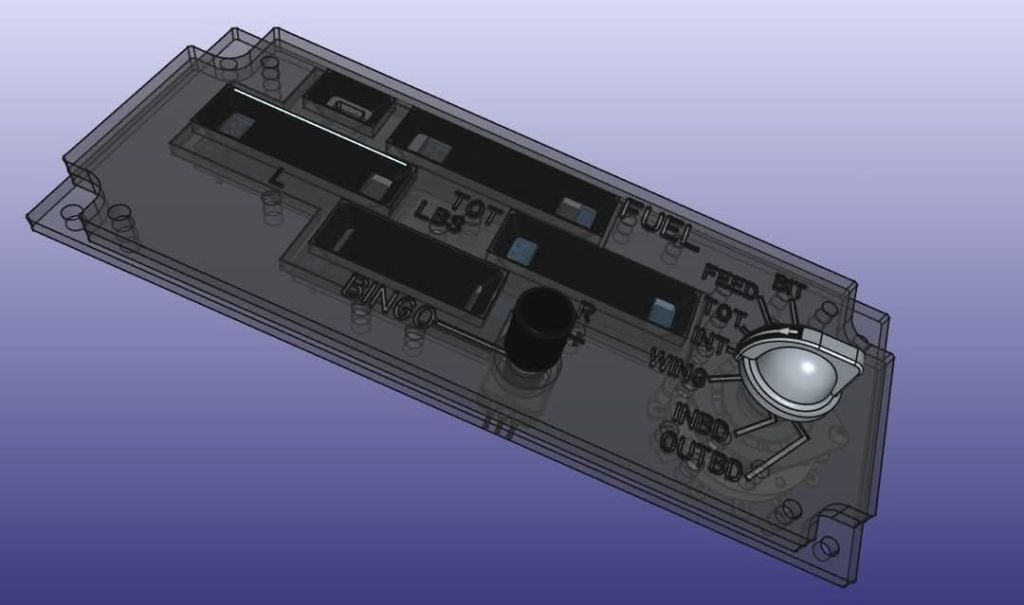

We emulate the number drums with 4x 128×32 OLED displays. The panel is made from 3x layers of laser cut Acrylic with the top panel also being laser engraved. The 4 OLED displays are also contained in a 3d printed tray that gives the “stair-sloped” effect of earlier versions of this panel. Later versions of this panel have smooth slopes, and we intend to offer a version of this part in the future that has these smooth slopes. The bingo knob is implemented with a rotary encoder.
