ACP – Armament Control Panel

The ACP panel is where you set weapon modes and fusing options. This is also where you can jettison the stores (or selectively jettison specific stations) when you have a need to clear your stations.

For the OpenHarrier project, this panel is made from 3 layers of 3mm thick laser cut Acrylic panels, with the top layer also being laser engraved. There are some 3d printed parts like a tray for holding the station selection indicators and the actual jettison stores rotary switch mechanism and push button.

The panel also uses 5x 128×64 pixel OLED displays to mimic the displays of the electromagnetic drum displays used on the real panel.

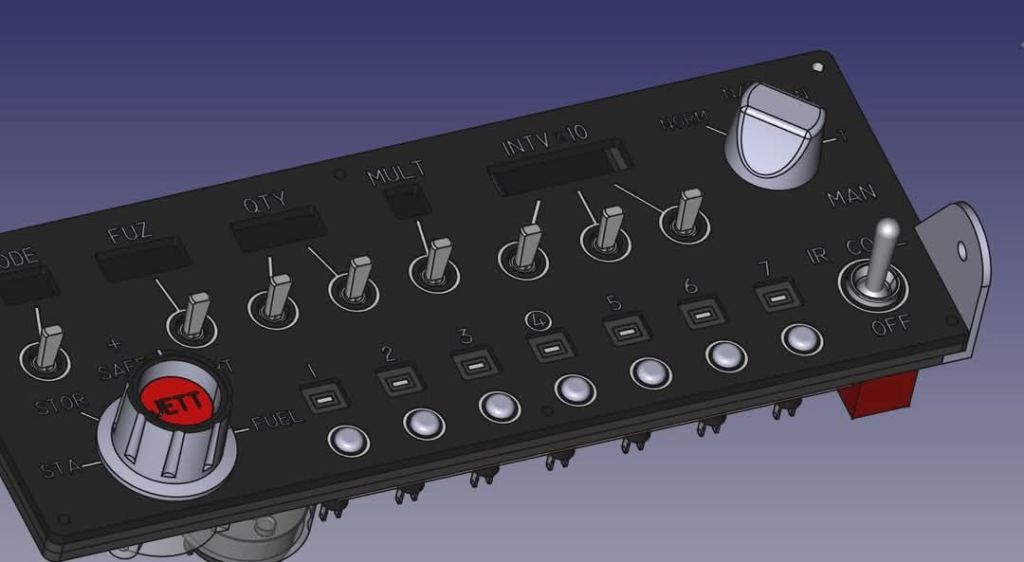

Completed CAD model of the Jettison stores knob and switch.

Working example of the Jettison Stores assembly.

Back of the ACP shown mounted on the main instrument panel.

The files for this panel are available on GitHub.
