I have begun designing the parts for the UFC to be 3D printed. While there are already UFC models available out there, most of them do not account for a HUD to be mounted behind them or are not accurate. I wanted to do my own take since I am going to have the 3 displays working and have it fully back lit.

I am designing it to be printed in pieces that get assembled together via screws. The upper structure would normally be supported by the HUD assembly, but I am going to design in threaded rods to support the UFC if there is no HUD assembly.

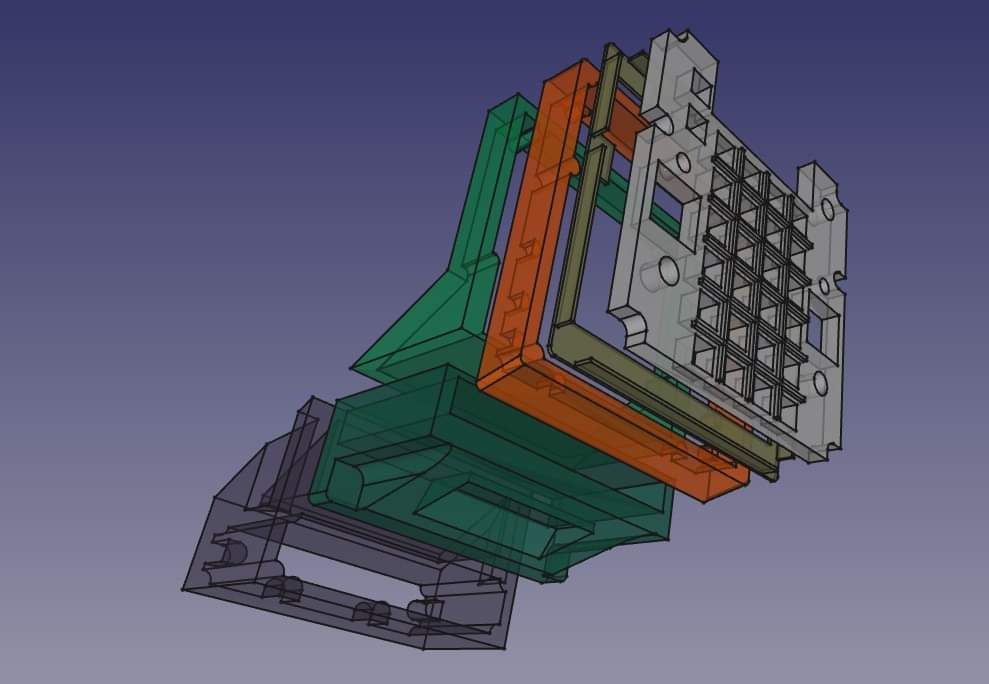

Below is a work in progress exploded view of some of the parts.
